keyTec N-tra system from Winkhaus

If you are looking for a convenient solution for your project, the keyTec N-tra turn key system is ideal choice.

N-tra can implement the widest range of locking hierarchies and can be tailored to your specific requirements with options such as master keys and central cylinders.

With the standard anti-drilling and picking protection and an additional security card for ordering extra keys and cylinders, N-tra offers protection at the highest level.

The ergonomic key made of wear-resistant nickel silver is also very convenient in use.

Reversible keys are always easy to use. However, Winkhaus keyTec N-tra offers extra special convenience. A new tip and a horizontal insert position ensure that the key can be inserted into the cylinder even more easily and securely. The rounded shape of the reversible key protects your pockets and handbag.

In addition to the convenient operation, the six solid spring-mounted pin tumblers on each side, the additional spring-lessly controlled radial pins and the standard anti-drilling and picking protection assure a high level of protection against tampering with the keyTec N-tra turn key system.

Cylinder

Key profile

- A variable length profile system prevents insertion of unauthorised keys.

- Horizontal key insertion with cross groove in the core

- Protected profiles with security card.

Pin tumbler

- 6 spring-mounted pin tumbler pairs

- Lateral radial pins are read by indentations (sideway pins) on the key.

Special feature:

- The profile of the key is also scanned with the profile catch pin in the cylinder for protection from copying

- Anti-manipulation protection with tempered stainless steel and anti-picking pins.

Key

- Increased wear resistance with nickel silver material

- 13.5 mm bow for for the combination of all commercially available security fittings

- Ergonomically shaped key bow for an improved grip

- Rounded key form protects pockets and handbags.

keyTec N-tra fulfils all requirements

+ Reliable and secure: thanks to sophisticated technology “engineered in Germany”

+ High-quality: with the use of refined surface finishes

+ Convenient: thanks to its user-friendly turn key function.

N-tra advantages:

+ 6 spring-mounted solid pin tumblers and up to 8 radial pins on 2 locking levels

+ Resistant to drilling and picking thanks to special pins

+ Protection against manipulation with catch pin function

+ 13.5 mm shoulder of the key for modern security fittings

+ Manufactured in compliance with DIN 18252 and DIN‑/‑EN 1303

+ Patent-protected.

Supplied with security card as:

Individually secured locks (EGS)

Additional deliveries can only be made when a valid security card is submitted to Winkhaus.

Option:

With a keyed-alike locking concept, you can open all doors with just one key: entrance door, garage and basement door.

ABUS Cylinder P12RPS

A B U S P12RPS cylinder with 5 keys

A B U S P12RPS Thumb turn cylinder with 5 keys

SECURITY AND DESIGN

REVERSIBLE KEY SYSTEM

REVERSIBLE KEYS WITH A WIDE RANGE OF COLOURS

The reversible dimple key system P12RPS offers its
users high locking comfort because the modern
key is equipped with dimples and does not have
sharp-edged cuts.
The advantage of the standard emergency function
is that the door can be opened even though
the keys are already inserted from one side of
the cylinder. Additionally you can choose your
preferred colour of the key cap from a wide range.
At a glance you can see which key belongs to
whom.

SECURITY FAR ABOVE THE STANDARD

The locking system P12RPS fulfils the high
requirements regarding the attack resistance of
the cylinder because they are standardly equipped
with SKG** certificate. Moreover the patented*
stop pin requests the locking permission inside
the cylinder and therefore ensures the legal and
technical copyright. Due to special drill protection
pins made of hardened steel as well as the
standard pre-snap function the manipulation
of the cylinder is more difficult. The security
card offers an additional protection. Only after
presentation cylinders and keys can be ordered.

AVAILABLE VERSIONS

The system P12RPS is available as individual locking
and service cylinder for all common cylinder types.
Keyed-alike cylinders to existing cylinders can
easily be reordered. Additionally the design key
caps are available in 12 appealing colours.

CYLINDER EQUIPMENT

As standard we deliver individual lockings with
5 keys and the Design Cap in sapphire blue.
All cylinders are equipped with pre-snap feature
as standard. Double cylinders are always delivered with emergency function (GKUP). Service cylinders will be delivered without key blanks.

* max. patent term to 2030

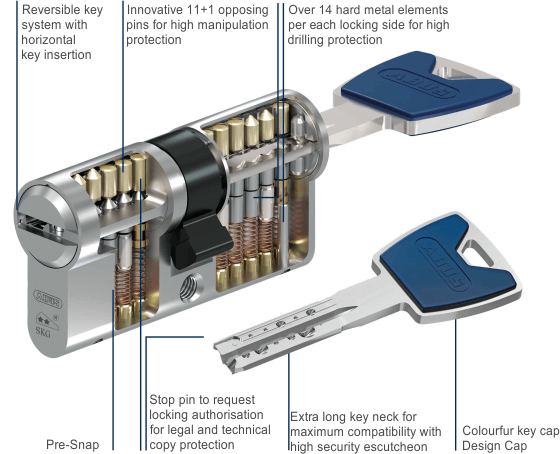

SYSTEM P12RPS

In detail


The reversible key system with horizontal key insertion offers users maximum convenience.	System P12RPS comes with a patented* key stopper in both the cylinder and the key.

The shape of the key makes it almost unnoticeable in your pocket.	This verifies that the key has the correct authorisation before opening. * max. patent term to 2030

SECURITY CARD

Replacement keys and additional cylinders will only be made up on presentation of the security card.

AS INDIVIDUAL AS YOU

Colour range

SECURITY IN COLOUR

The locking system P12RPS offers besides its security features a large variety of colours to underline
the individuality. Choose your favourite colour out of twelve design colours. For sure there is the right
colour available for each member of your family. Due to the colour coding you can distinguish all keys
at a glance – no need to search any longer for the right key.

COLOUR RANGE

SYSTEM P12RPS

Highlights

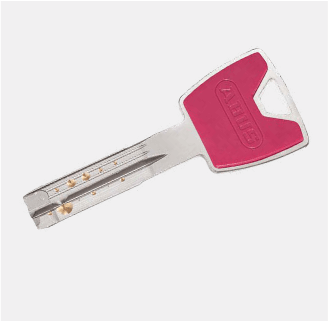

Reversible key
The state-of-the-art key uses dimples instead of sharp-edged cuts for maximum comfort.

Emergency function
It allows the cylinder to be operated from one side even if a
key is inserted on the other side of the cylinder.

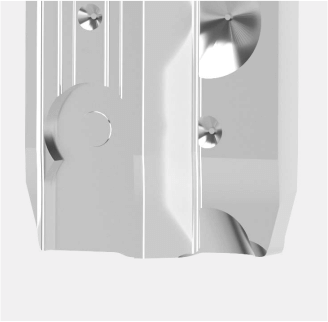

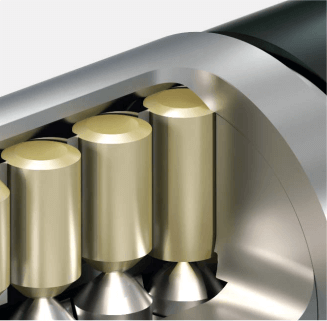

Anti-drill protection
The P12RS is equipped as standard with over 14 hard metal
elements per locking side.

One-key concept
Additional cylinders and cylinder types can be supplied
for the same key.

Security card
Replacement keys and additional cylinders will only be made
up on presentation of the security card.

SKG certificate**
Cylinder specially tested and certified for attack resistance.

Patent
Cylinders and keys are protected by international patents to ensure
legal and protection against illegal key duplication. The maximum
range is up to the specified year.

Trademark protection
A certain design element on the key has a registered trademark without
a protection period in order to ensure additional protection of the key
even after the expiry date of the patent(s).

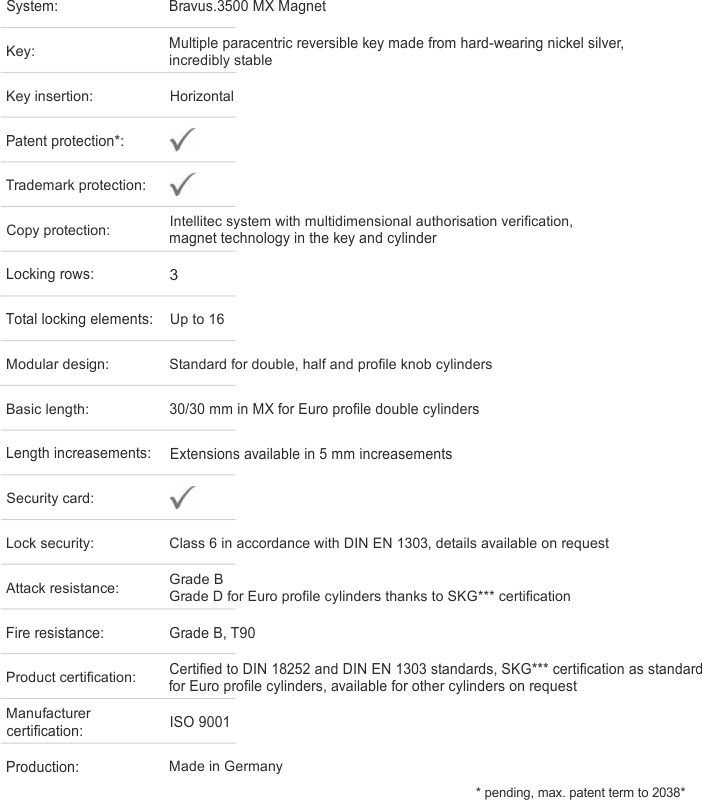

TECHNICAL DETAILS

Overview

Source: www.abus.com/de

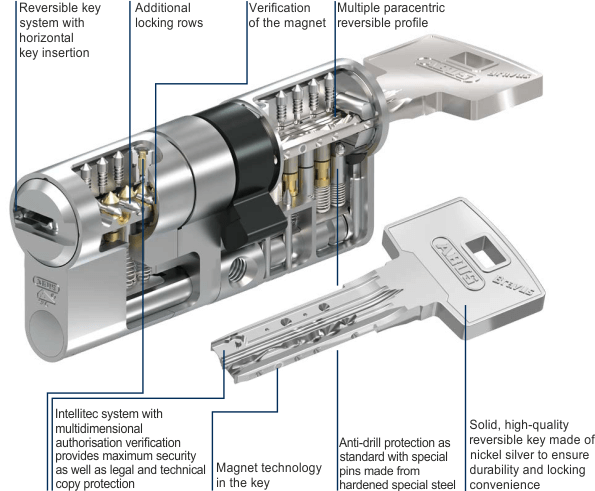

ABUS Cylinder Bravus 3500 MX Magnet

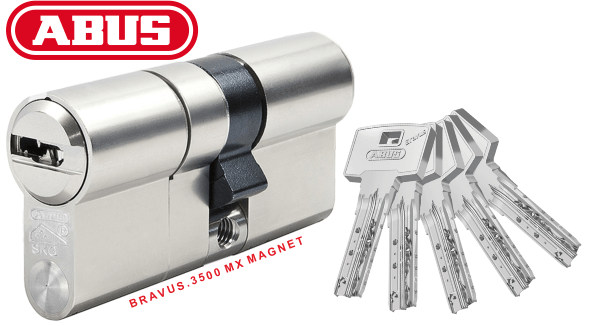

A B U S Bravus 3500 MX MAGNET Cylinder with 5 keys

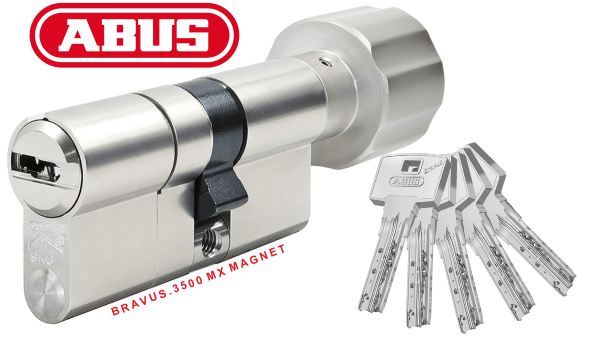

A B U S Bravus 3500 MX MAGNET Thumb turn cylinder with 5 keys
